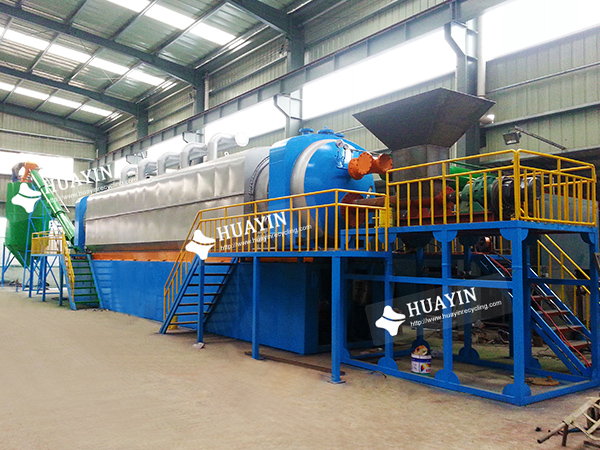

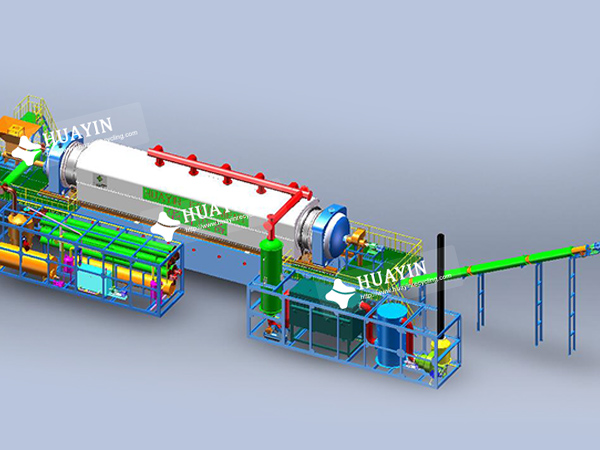

The source material is continuously fed into pyrolysis reactor, where it is decomposed under heating in a primarily non-reactive environment.

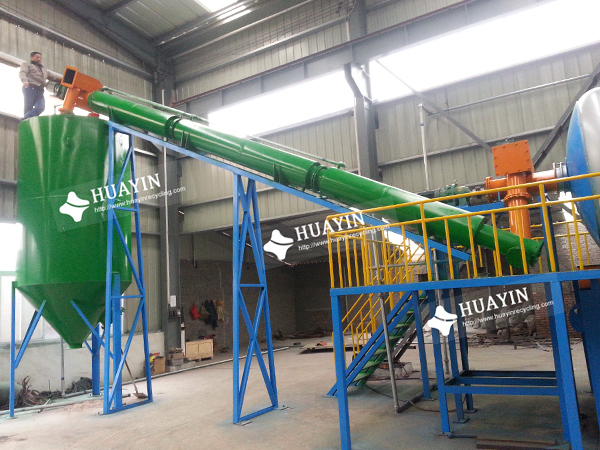

1. Solid wastes (plastic/tyre/rubber) is fed by screw conveyor from the hopper.
2. The pyrolysis reactor is heated by the fuel burner. When the heat temperature rises to the set value, the decomposition process starts.
3. After the operation process is stable, heating is carried out by gas burner operating on pyrolysis gas.
4. From the pyrolysis reactor, the oil gas goes into condensers. Then it is cooled in the heat exchanger.
5. Oil gas enters the condenser, cools down to liquid while the non-condensed gas is used as fuel to sustain the heating process, enhancing its performance and significantly reducing operating cost.
6. The solid residue is discharged from the lower part of the reactor and shifted to receiving hoppers by the screw conveyor without oxygen access.

Guarantee on the equipment after putting into service –one year. Guarantee on the equipment from the date of shipment -18 months. Service life -10 years.
Thermal decomposition plant is equipped with online monitoring modules, requiring internet access for data recording.
